Spine Model Force System

Description

I designed a biomechanical force system to simulate forces within the body on both pediatric and adult plastic spine models.

The setup used an adjustable pegboard with eyebolts and springs of varying stiffness. These could be stretched across a wide distance range, applying 0.5–20 lbf to any vertebrae from 200+ positions both laterally and radially.

This technical decision allows demos of nearly any tool or instrument thanks to the high degree of customizability.

Gallery

cover

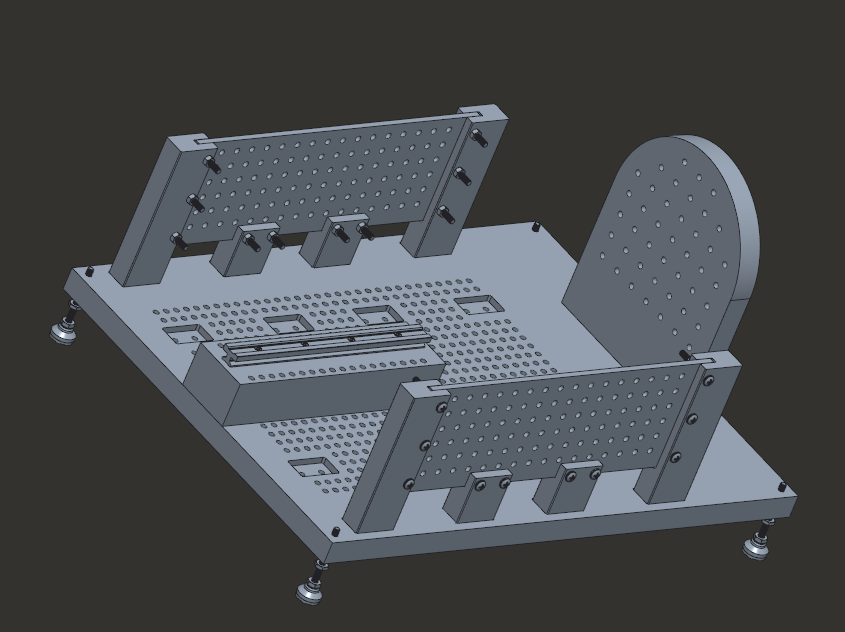

Spine%20Model%20Force%20System

Interactive Model

Note: This is a large file and may take time to load. If it doesn’t appear, try refreshing the page or opening it on a desktop browser.

Can’t see the viewer? Open or download the model directly .
